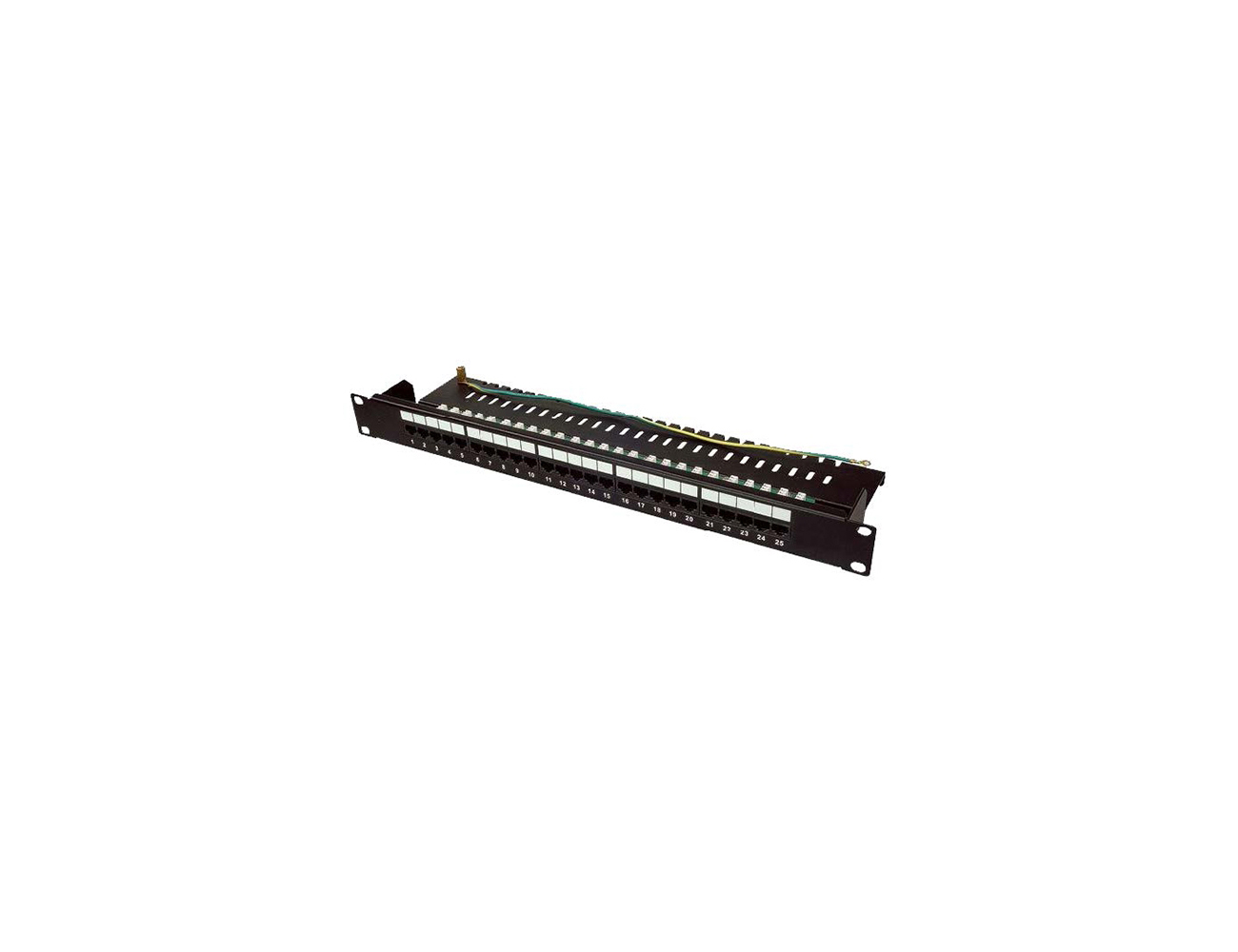

1U 25 Port UTP Cat3 ISDN Patchpanel

1U 25 Port UTP Cat3 ISDN Patchpanel

FEATURES

  • Meeting the ANSI/TIA-568-C.2 Category 3, ISO/IEC11801 and EN50173-1 specification.

  • Supports T568 A&B wiring & easy installation.

  • IDC connector can accept 23-26 AWG solid and stranded cables.

  • Industry standard tools like (110 or Krone punch down tools ).

  • Wire manage hole for easy to manage wires with cable ties.

  • RoHs Compliant



ELECTRICAL & PHYSICAL SPECIFICATIONS

  • IDC Contact: 0.8mm thickness Phosphor Bronze,tin plating over nickel

  • Jack Operating life : minimum 750 insertions

  • High impact plastic housing, UL 94V-0

  • Jack Contact : Phosphor Bronze,50μinch thickness gold plated over nickel

  • IDC Operating life : minimum 200 insertions

  • PCB : FR-4,1.6mm thickness

  • Dielectric Strength : 1000V RMS for 1min

  • Insulation Resistance : 10MΩ min

  • Contact Resistance : 2mΩ per contact

  • Temperature Range : -10 C to 60 C max

  • Humidity : 10%-65%
