APPLICATION
-
10BASE- TX Ethernet
-
100BASE –TX Fast Ethernet
-
1000BASE –TX Fast Ethernet
-
250 MHz and above
-
Voice, Video and other applications.
ELECTRICAL SPECIFICATIONS
-
Dielectric Strength: 1000 V RMS for 1min
-
Insulation Resistance: 10MΩ min
-
Contact Resistance: 20 mΩ max
-
Storage Temperature: -40 °C to +70 °C max
-
Operating Temperature: -20 °C to +60 °C max
-
Humidity: 10 %- 65%
-
Imbalance Input/Output Resistance : 200 m Ohm max.
-
Isolation Resistance : 500 Mega Ohm min. @500 Vdc
-
DC Resistance : 0.1 Ohm max @20 °C
-

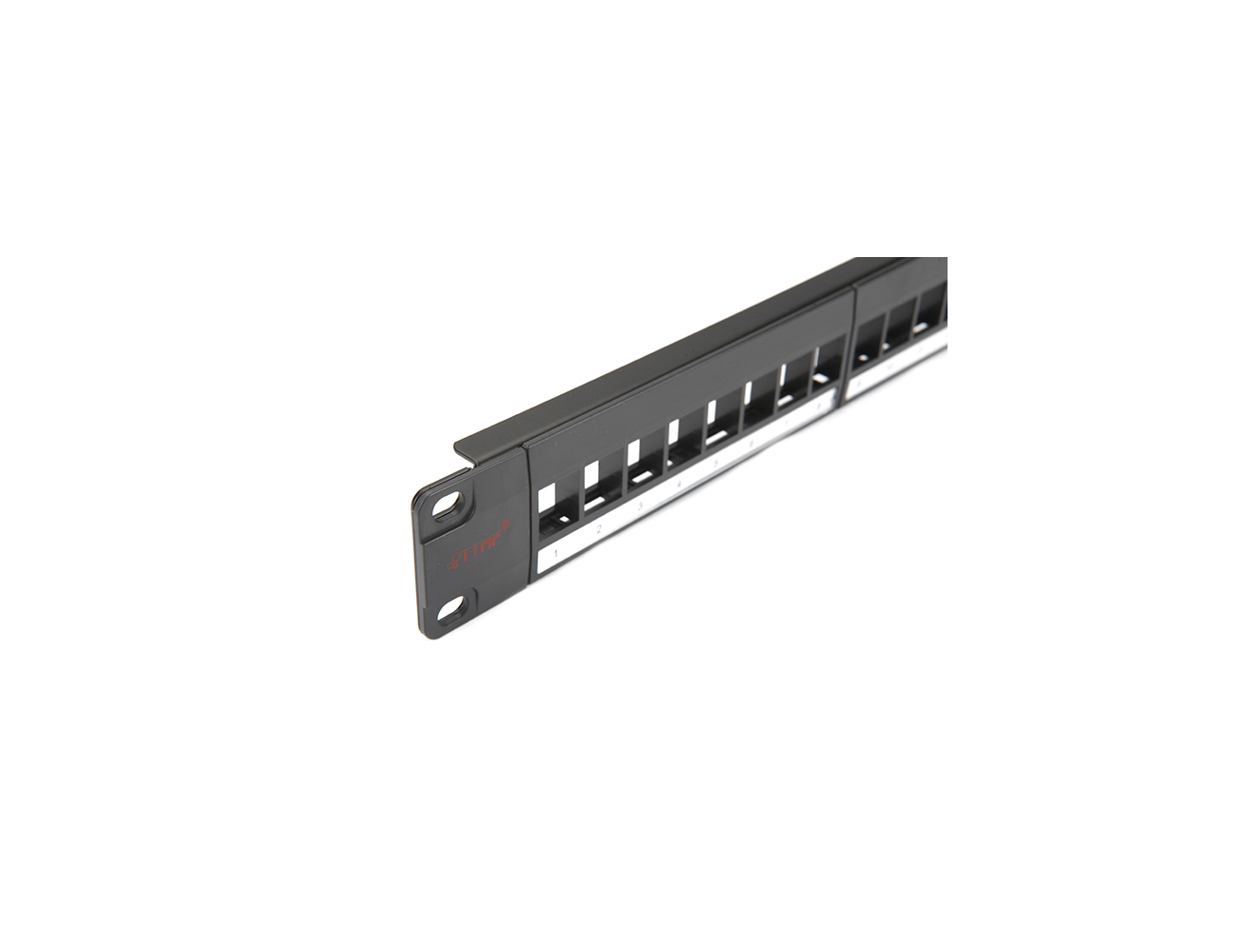

EMC Standarts: EN-55022 Class B, FCC Part 15 Subpart J Class AEthernet Patch Panel
