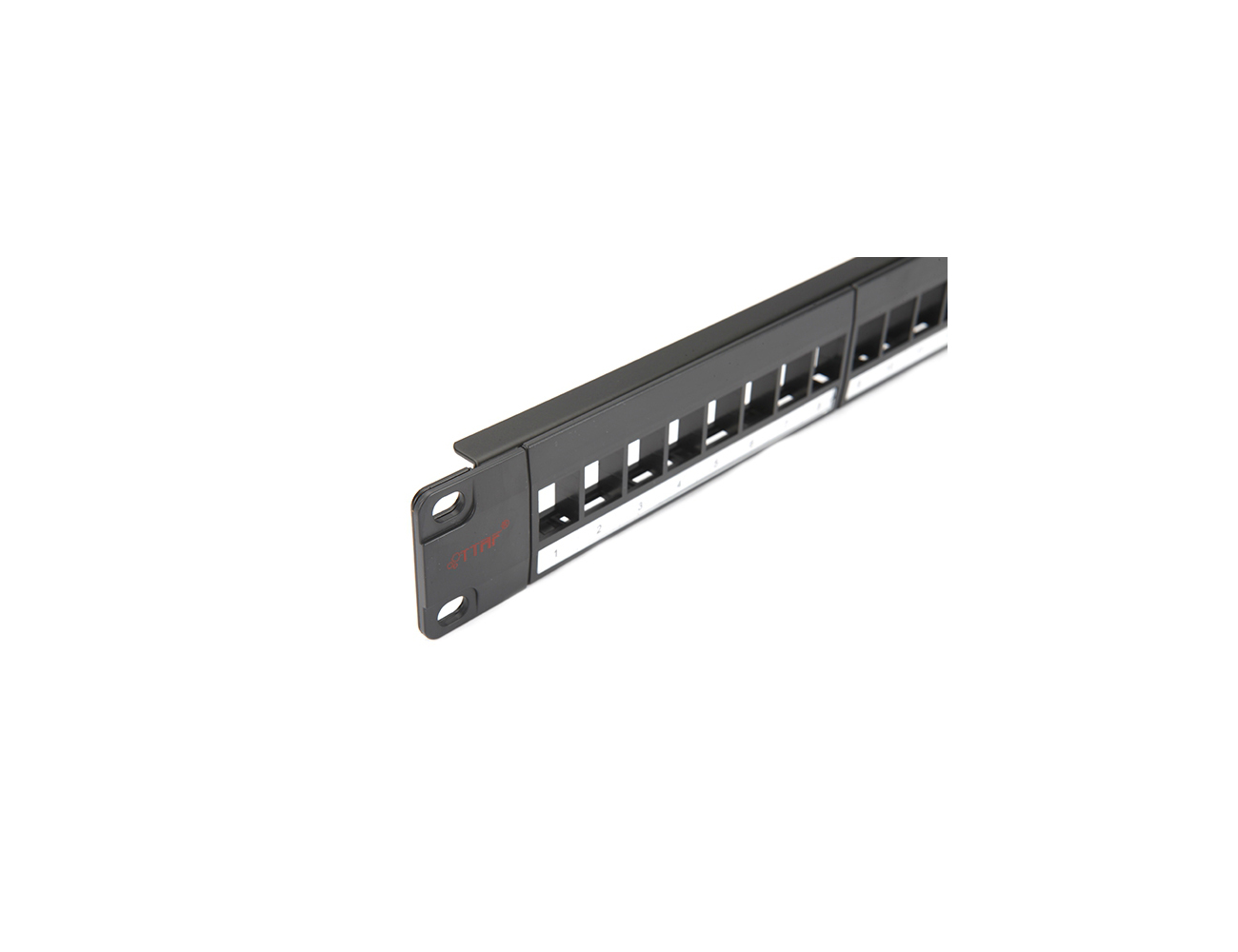

24 Port Cat6 Patchpanel(Un loaded)

24 Port Cat6 Patchpanel(Un loaded)

APPLICATION

  • 10BASE- TX Ethernet

  • 100BASE –TX Fast Ethernet

  • 1000BASE –TX Fast Ethernet

  • 250 MHz and above

  • Voice, Video and other applications

ELECTRICAL SPECIFICATIONS

  • Dielectric Strength: 1000 V RMS for 1min

  • Insulation Resistance: 10MΩ min

  • Contact Resistance: 20 mΩ max

  • Storage Temperature: -40 °C to +70 °C max

  • Operating Temperature: -20 °C to +60 °C max

  • Humidity: 10 %- 65%

  • Imbalance Input/Output Resistance : 200 m Ohm max.

  • Isolation Resistance : 500 Mega Ohm min. @500 Vdc

  • DC Resistance : 0.1 Ohm max @20 °C

  • EMC Standarts: EN-55022 Class B, FCC Part 15 Subpart J Class AEthernet Patch Panel
