MATERIAL
-

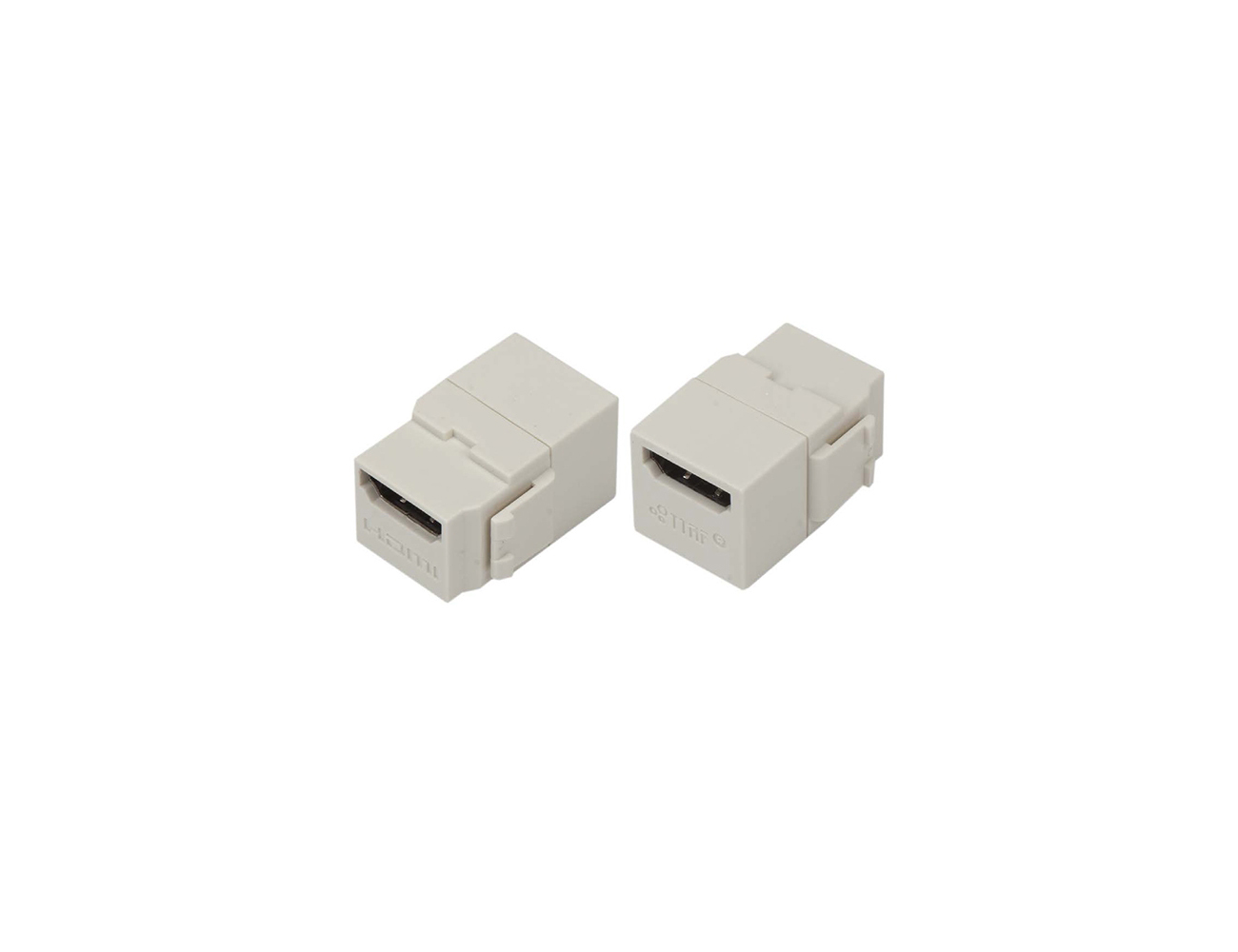

Coupler Housing : ABS High-Impact UL94V-0 Thermoplastic
-
Contact : 3U’’ Gold-Plated.
-
Color : White
-
RoHS Compliant
PHYSICAL CHARACTERISTICS
-
Durability Matingcycle : 1000 Cycles Min.
-
Insertion Force : 4.5Kgf Max.
-
Withdraw Force : 0.5Kgf-4Kgf.
-
Operation Temperature :-55°C to 85°C.
ELECTRICAL
-
Contact Current Rating : 0.5A Min.
-
Voltage Rating : 40V AC(RMS)
-
Insulation Resistance : 100M ohms Min.
-
Contact Resistance : 2 Ohm Max.
-
Dielectric With Standing Voltage : 300 V. AC.
